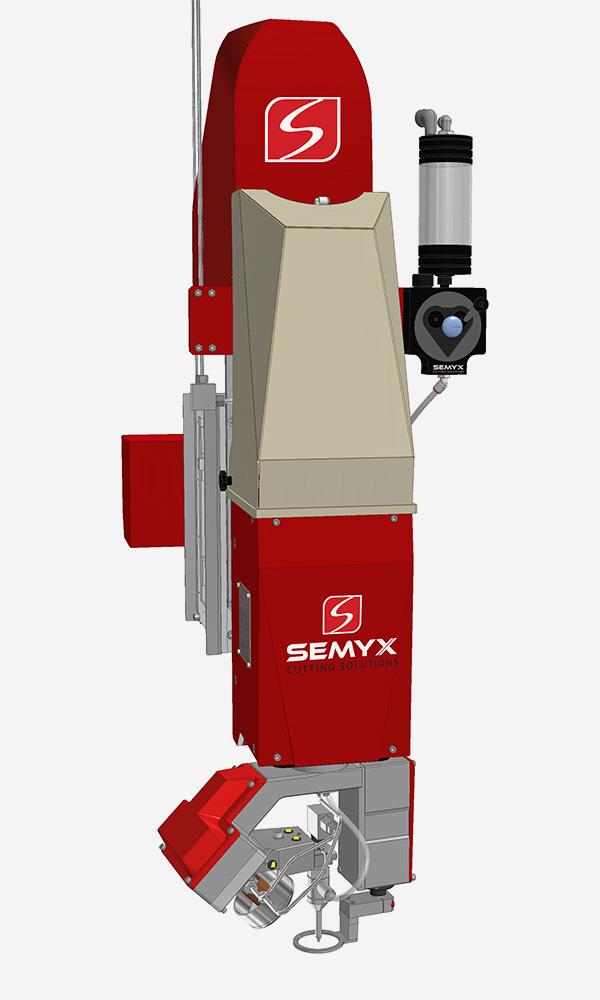

The Semyx Cutting Solution 5-axis head takes the tilting head a step beyond and cuts beveled and 3D parts with a 60 degree angle. Our 5-axis head gives you the ability to cut parts even faster with more accuracy than ever.
- Beveling angle (B Axis): 0° to 60°
- C-Axis rotation Angle: Unlimited (infinite)
- Angular accuracy: ≤ 30 Arcminutes
- C Axis maximum RPM: 17 RPM
- Weight: 40 kg
- Accuracy at the tool center point TCP: ± 0.25 mm
- Abrasive Swivel Joint: Unlimited (infinite)
- Electronic resolution: 0.9′
Addition of the tilting cutting head may reduce the working envelope
